Default MSD box mounting locations

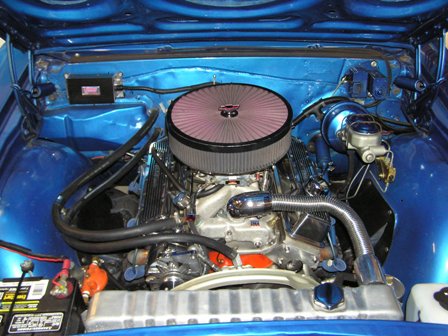

Any of you guys out there have any pics of where you mounted your MSD ignition boxes? My car originally had it mounted under the dash but not done nice. I decided against keeping it there although it does keep the underhood side cleaner. I am thinking about putting it on top of the heater box on the firewall. I figure it should be a fairly short run for the wires and my car has plastic wheel wells so that idea didn't seem too hot. I thought I could also run the small wires through the factory firewall gutter and snake the main power wire inside the passenger side fender to the battery +. I decided to run HEI for now with it and already bypassed the module in the distributor. I'd like to see what it actually looks like there before I drill holes and mount. I guess my other option is Velcro for mock-up.
__________________
1970 Chevelle SS396 project with 454/M20 ps,pdb,U14 gauges, rear defroster
84 K5 Blazer 350/SM465
75 K5 Blazer 355/SM465/8 lugs
