  #1
Old 10-03-2014, 10:29 AM
Todd's Avatar
Todd Todd is offline
Junior Member

Join Date: Sep 2014
Posts: 4
Default My 406
Here a couple of pics of mine.
Attached Thumbnails
Click image for larger version Name: IMG_1696.jpg Views: 1034 Size: 66.5 KB ID: 3367   Click image for larger version Name: IMG_1697.jpg Views: 1006 Size: 57.8 KB ID: 3368
Reply With Quote
  #2
Old 07-26-2013, 10:16 PM
earthquake68's Avatar
earthquake68 earthquake68 is offline
Senior Member

Join Date: Aug 2011
Location: THIS IS SPARTA!!! ....Mo.
Posts: 800
Default
I guess Beaumonts were more potent than just a TURBO-jet, those puppies had ASTRO-jets!
__________________
Alan
1964 Chevelle SS
Speed's expensive, how fast do you want to go?
Reply With Quote
  #3
Old 08-13-2013, 10:12 AM
mestorod70 mestorod70 is offline
Senior Member

Join Date: Jun 2013
Location: honah lee in a cave by the sea
Posts: 446
Default
a few pics.
it finaly runs
Attached Thumbnails
Click image for larger version Name: new engine 103.jpg Views: 1086 Size: 88.0 KB ID: 2793   Click image for larger version Name: new engine 104.jpg Views: 1057 Size: 81.0 KB ID: 2794   Click image for larger version Name: new engine 105.jpg Views: 1059 Size: 75.9 KB ID: 2795
Reply With Quote
  #4
Old 12-08-2013, 08:34 AM
mino65 mino65 is offline
Junior Member

Join Date: Jan 2013
Location: east haven,ct.
Posts: 5
Default Engine bay
Here is 1 of my MJ496
Attached Thumbnails
Click image for larger version Name: 008.jpg Views: 1096 Size: 80.0 KB ID: 3024
__________________
65 chevelle, MJ 496,th350,4.10 3600 lbs,1.43,60 ft.10.38 at 128mph
Reply With Quote
  #5
Old 01-15-2014, 07:44 PM
vht vht is offline
Junior Member

Join Date: Jan 2014
Posts: 27
Default
Melonhead, I see you replaced the a/c compressor in your pics, with a BIGGER one!
Reply With Quote
  #6
Old 03-02-2014, 02:17 PM
Hi-po SS 454 Hi-po SS 454 is offline
Junior Member

Join Date: Jun 2013
Location: So. Cal.
Posts: 18
Default


Brand new 2 week old Mark Jones www.vortecproperformance.com 468" 570.2 608 torque mello beast. 781 ovals 2.19-1.88 with runner and bowl work. Custom grind hyd roller. Scat crank. Screams, "Got the POWER".
New Center Force DF clutch and Center Force steel flywheel.
__________________
Rich
71 Chevelle 468 M22W Autogear Muncie 3.55 12B
http://www.youtube.com/watch?v=pdE04Ei9jZg
Reply With Quote
  #7
Old 10-03-2014, 07:23 PM
Ms Grumpy's Avatar
Ms Grumpy Ms Grumpy is offline
Bowtie Member

Join Date: Dec 2009
Location: Just outside San Antonio, Texas
Posts: 7,403
Default
Ken you have a pretty clean motor having seen it in person. I run down too many dirty roads to keep mine that clean. That's what I get for having family in the sticks.
__________________
Get in, sit down, shut up, hold on...cause Ms Grumpy is driving !

For the audio geek try: www.audiokarma.org

Reply With Quote
  #8
Old 10-03-2014, 08:16 PM
shadowgray396's Avatar
shadowgray396 shadowgray396 is offline
Senior Member

Join Date: Dec 2009
Location: Oregon City, Oregon
Posts: 6,062
Default
My motor looks boring compared to all these nice lookng engines.
__________________
Ray
1970 SS Chevelle Van Nuys Built
Reply With Quote
  #9
Old 12-13-2014, 03:57 PM
hkalin's Avatar
hkalin hkalin is offline
Senior Member

Join Date: Nov 2012
Location: Connecticut
Posts: 118
Default

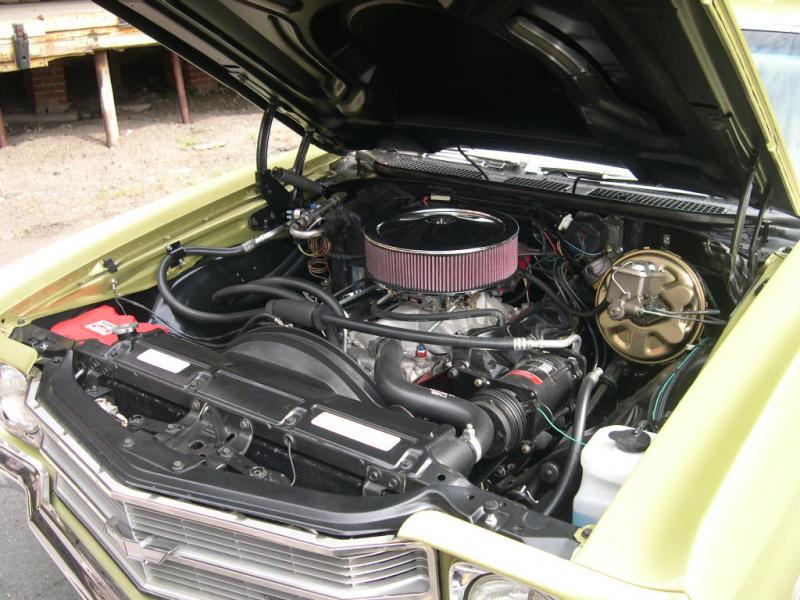

Like a somewhat stock look.
Attached Thumbnails
Click image for larger version Name: DSCN1259.jpg Views: 929 Size: 78.0 KB ID: 4259   Click image for larger version Name: DSCN1260.jpg Views: 939 Size: 83.9 KB ID: 4260
Last edited by hkalin; 11-19-2017 at 11:50 AM.
Reply With Quote
  #10
Old 01-01-2015, 07:43 AM
71Stnbrgn's Avatar
71Stnbrgn 71Stnbrgn is offline
Junior Member

Join Date: Jan 2012
Location: Near Aylmer, Ontario - Canada
Posts: 2
Default
[QUOTE=hkalin;56393]Just needs a few more finishing touches.





Just looking at your photos (very nice BTW). What have you got for a top on your Master Cylinder. It looks like it's sealed some how.
Reply With Quote
